SPECIFICATIONS



Brand Name: lokey

Accessory Type: Charger Accessories

Origin: Mainland China

Model Number: 48V 60V 72V 20A 15A 12A 10A 8A lipo lifepo4 AAA battery charger carreg

Certification: CE

Certification: weee



48V 60V 72V 20A 15A 12A 10A 8A lipo lifepo4 AAA battery charger carregador electric scooter motorcycle ebike chargeur cargadores

Please Remark what Input AC And Output DC Plug do you need in Below picture.Or We will ship 220V EU and C13 PIN plug to you.Thank You!!!

Features

AC input:  220V AC, 50Hz

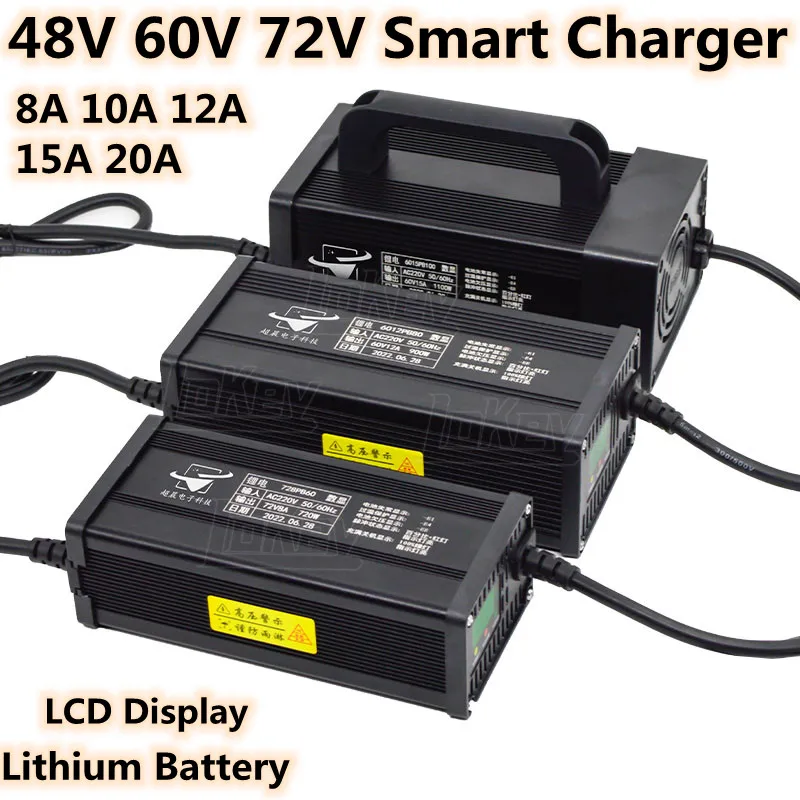

DC output voltage: 48V/60V/72V  customized as your need

Weight:about 1.3kg/1.6kg/1.9kg

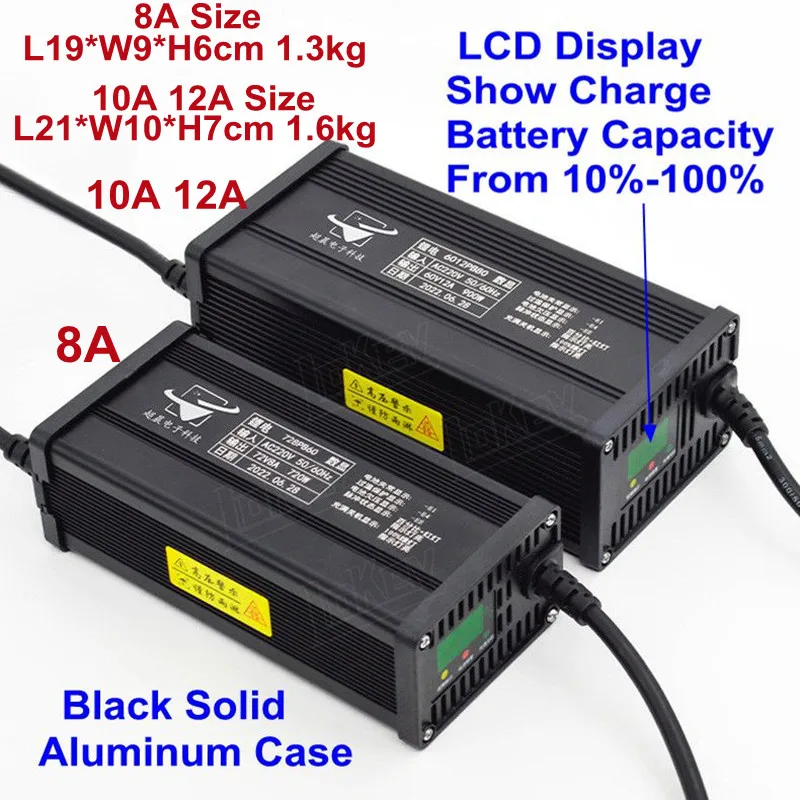

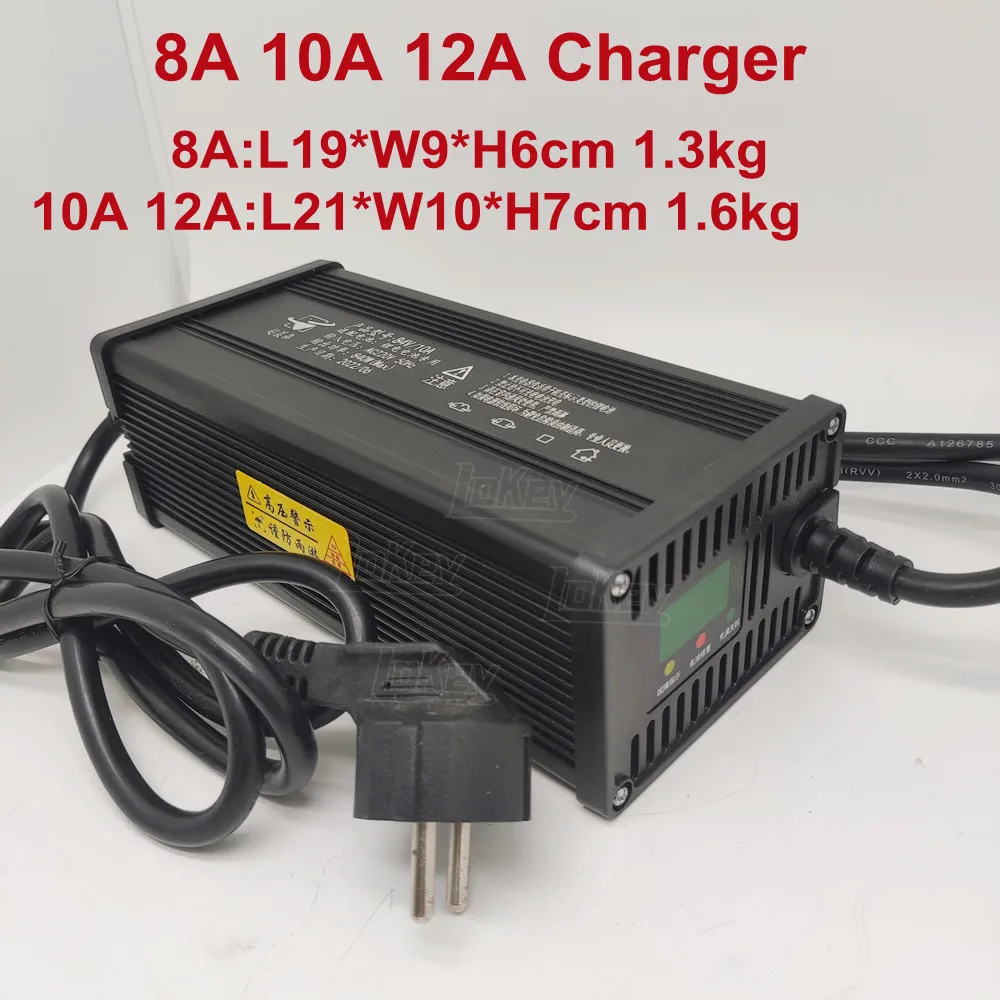

8A Size:L19*W9*H6cm   1.3kg             600W

10A 12A Size:L21*W10*H7cm 1.6kg     800W

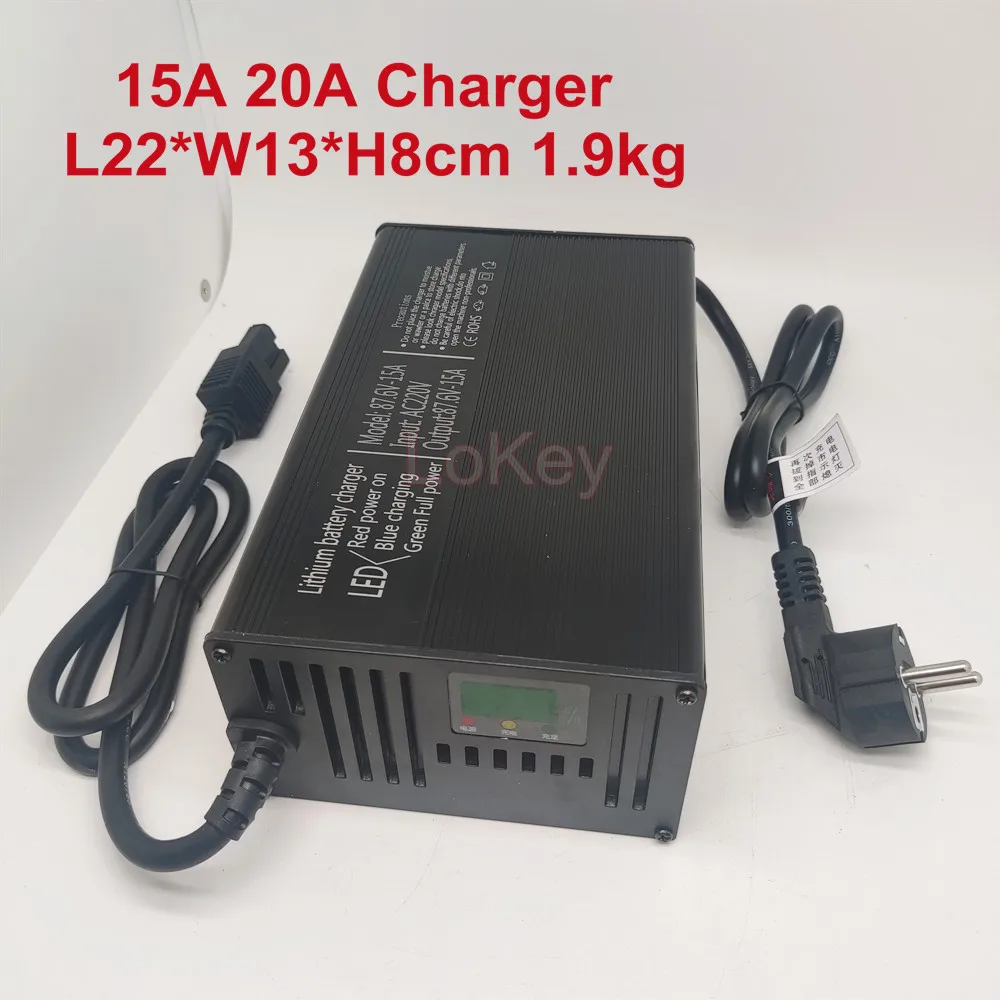

15A 20A Size:L22*W13*H8cm 1.9kg     1500W

Efficiency: >93%

Charger Power:600W–1500W
Output current :8A 10A 12A 15A 20A

Color: Black

Material: Solid Aluminum case.

Use for : 30Ah–200Ah Li ion/lifepo4/LTO battery

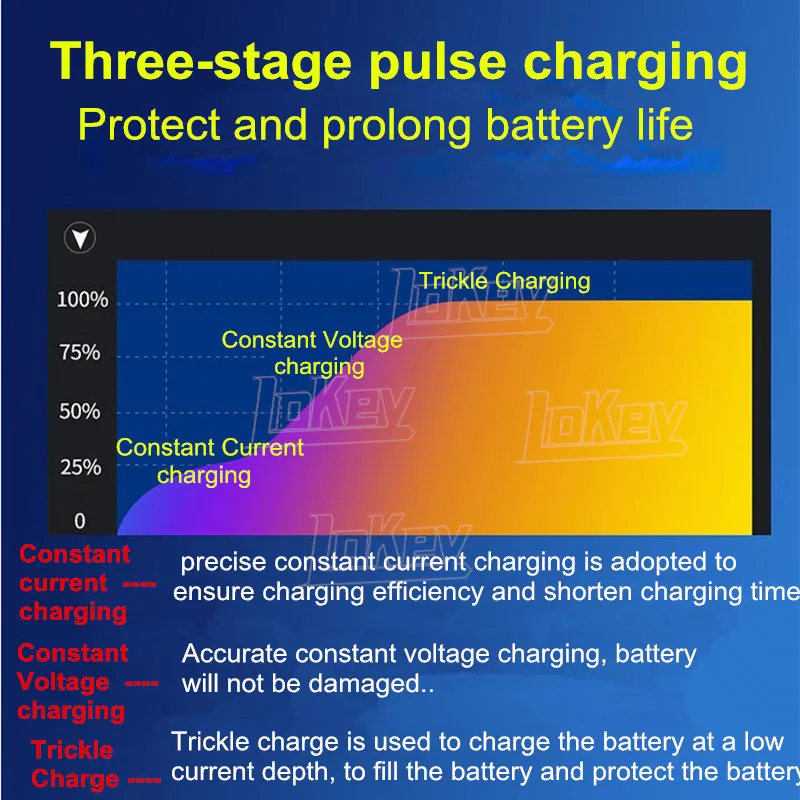

Charging Mode:3 Stages, CC, CV, Trickle

Protect Characteristic
1.Short-circuit protection
2.Over-current protection
3.Over-voltage protection
4.Reverse Polarity Protection

5.Over-temperature protection

Work Conditions:
Ambient temperature: -5 – 40℃
RH: 5 – 95%
Max. altitude: 10000  meter
Cooling: chargers use of forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise not exceeding 40℃.

Storage conditions

Ambient temperature: -40 – 70℃
RH: 0 – 95%

Max. altitude: 20000 meters.
